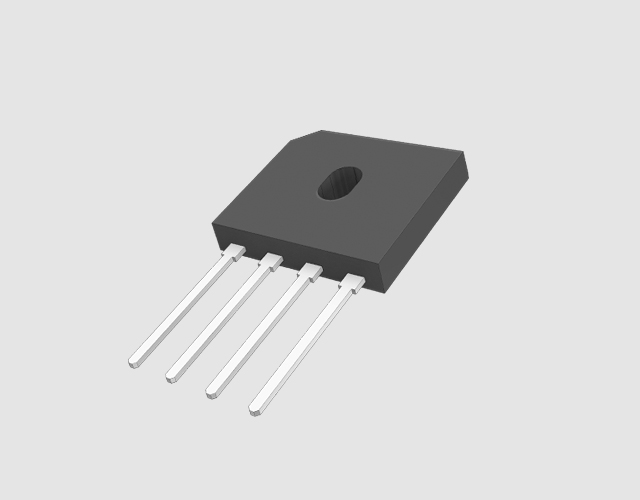

| MBS/MBF/MBM/ABS/DBS/DB-1 RECTIFIER BRIDGES 插件橋堆 | ||||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline | MPQ |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | |||
| 4A系列 | ||||||
| GBU4005 | 4.00 | 1.10 | 50.00 | 5.00 | GBU | 1K |
| GBU401 | 4.00 | 1.10 | 100.00 | 5.00 | ||
| GBU402 | 4.00 | 1.10 | 200.00 | 5.00 | ||
| GBU404 | 4.00 | 1.10 | 400.00 | 5.00 | ||
| GBU406 | 4.00 | 1.10 | 600.00 | 5.00 | ||
| GBU408 | 4.00 | 1.10 | 800.00 | 5.00 | ||
| GBU410 | 4.00 | 1.10 | 1000.00 | 5.00 | ||
| MBS/MBF/MBM/ABS/DBS/DB-1 RECTIFIER BRIDGES 插件橋堆 | ||||||
| Type |
Maximum average
forward rectified
current |
Maximum
instantaneous
forwardvoltage |
Maximum
repetifive peak
reverse voltage |
Maximum
instantaneous
reverseat rated Vds | Outline | MPQ |
| IF (A) | VF(Max) (V) | Vdc (Min) (V) | IR (Max) (uA) | |||
| 4A系列 | ||||||
| GBU4005 | 4.00 | 1.10 | 50.00 | 5.00 | GBU | 1K |
| GBU401 | 4.00 | 1.10 | 100.00 | 5.00 | ||
| GBU402 | 4.00 | 1.10 | 200.00 | 5.00 | ||
| GBU404 | 4.00 | 1.10 | 400.00 | 5.00 | ||
| GBU406 | 4.00 | 1.10 | 600.00 | 5.00 | ||
| GBU408 | 4.00 | 1.10 | 800.00 | 5.00 | ||
| GBU410 | 4.00 | 1.10 | 1000.00 | 5.00 | ||
